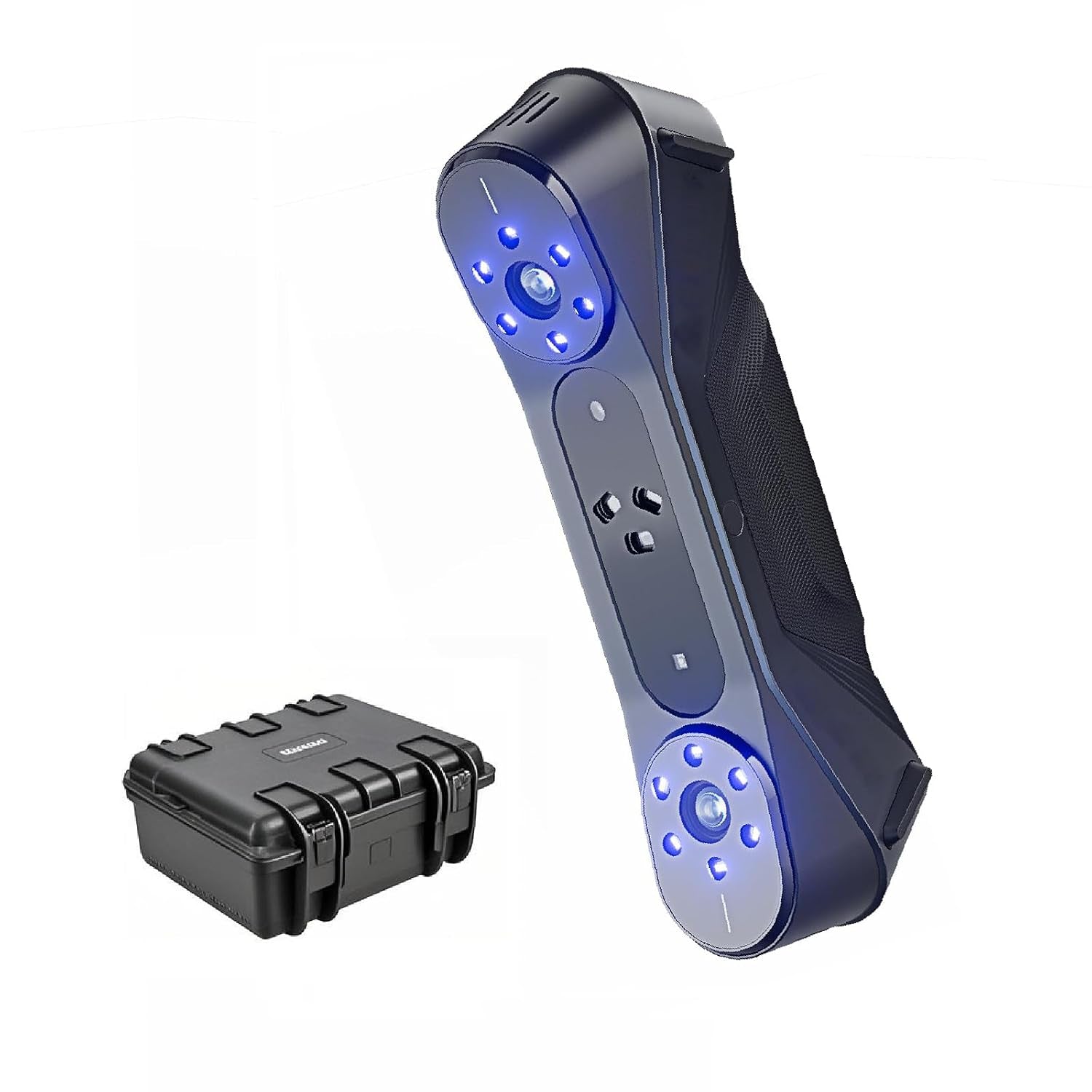

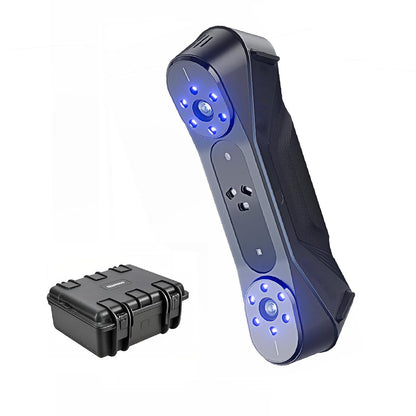

3D Scanner Raptor Pro for 3D Printing, Handheld 3D Scanner 0.02Mm Accuracy, 22+7 Blue Laser & NIR, 60Fps High-Speed & 5MM to 4M Objects, 24-Bit Full-Color Scanning for Windows Macos

The Creality 3D Scanner Raptor Pro for 3D Printing, Handheld 3D Scanner 0.02Mm Accuracy, 22+7 Blue Laser & NIR, 60Fps High-Speed & 5MM to 4M Objects, 24-Bit Full-Color Scanning for Windows Macos combines blue laser and near-infrared scanning technologies for detailed 3D capture across objects ranging from 5mm to 4m. It supports scanning speeds of up to 60 FPS, 24-bit full-color texture capture, marker-based alignment, and direct scanning of many black and metal surfaces. Designed for use with Windows and macOS systems, it is suitable for detailed scanning and 3D printing workflows.

Specifications

• Model: Raptor Pro

• Accuracy: 0.02mm

• Scanning Speed: Up to 60 frames per second

• Scanning Rate: 660,000 points per second

• Laser Configuration: 22+7 blue laser lines

• Structured Light: Infrared binocular structured light

• Supported Object Size: 5mm to 4m

• Single Capture Range: 270mm × 170mm at 300mm

• Color Capture: 24-bit full-color scanning

• System Compatibility: Windows and macOS

• Recommended CPU: At least 8 cores, 16 threads, and a 2.4GHz base frequency

• Package Dimensions: 13.7 × 12.28 × 6.46 inches

• Item Weight: 8 pounds

Features

• High-Precision Scanning: Captures complex surface details with accuracy up to 0.02mm.

• Multiple Scanning Modes: Combines blue laser lines and near-infrared structured light for different object sizes and surface types.

• High-Speed Capture: Scans at up to 60 FPS with a rate of 660,000 points per second.

• Wide Scanning Range: Supports small objects from 5mm and larger objects up to 4m.

• Full-Color Texture Capture: Supports 24-bit color mapping for detailed texture reproduction.

• Marker-Based Alignment: Supports alignment and stitching across multiple scans.

• Black and Metal Surface Scanning: Can directly scan many black and metal objects with reduced dependence on powder coating.

• Wireless Accessory Compatibility: Supports wireless scanning when used with a separately purchased compatible scan bridge accessory.
