55 Inch 10 Points IR Touch Frame Infrared Touch Screen without Glass USB Interface Free-Drive for Touch Monitor, Interactive White Board, Digital Kiosks and Interactive Displays

The 55 Inch 10 Points IR Touch Frame Infrared Touch Screen without Glass USB Interface Free-Drive for Touch Monitor, Interactive White Board, Digital Kiosks and Interactive Displays is a multi-touch solution that uses infrared sensor technology to detect disruptions within an invisible infrared light grid. Designed as a touch frame only without a display or glass, it provides responsive touch input for digital signage, interactive kiosks, educational environments, self-service systems, touch tables, interactive whiteboards, and collaborative workspaces.

Specifications

• Product Type: Infrared Touch Screen Overlay Frame

• Display Type: Touch Frame Only, Without Display or Glass

• Standard Size: 55 Inches

• Screen Size: 55 Inches

• Aspect Ratio: 16:9

• Display Technology: LCD

• Screen Finish: Glossy

• Viewing Angle: 178 Degrees

• Resolution: 32767 × 32767

• Minimum Touch Object: 4 mm

• Frames Per Second: Up to 450 fps

• Typical Response Time: 3–10 ms

• Listed Response Time: 10 Milliseconds

• Light Transmission: 100% Without Glass

• Power Supply: Single USB Connection

• Operating Voltage: USB DC +5V ±5%

• Operating Power: ≤2W

• Standby Power: ≤250 mW

• Operating Temperature: -20°C to 70°C

• Storage Temperature: -40°C to 85°C

• ESD Protection: 8 kV Contact Discharge, 15 kV Air Discharge, and 15 kV on USB Connector Pins

• Protocols: HID, TUIO, Flash

• Connectivity: Infrared and USB

• USB Ports: 1

• HDMI Ports: 1

• Component Outputs: 1

• Operating Systems: Driver-Free for Windows 7, Windows 8, and Windows 10; Native Linux; Native Android; Single-Point Touch Under Mac

• Fault Tolerance: Workable Even if 75% of Sensors Are Damaged

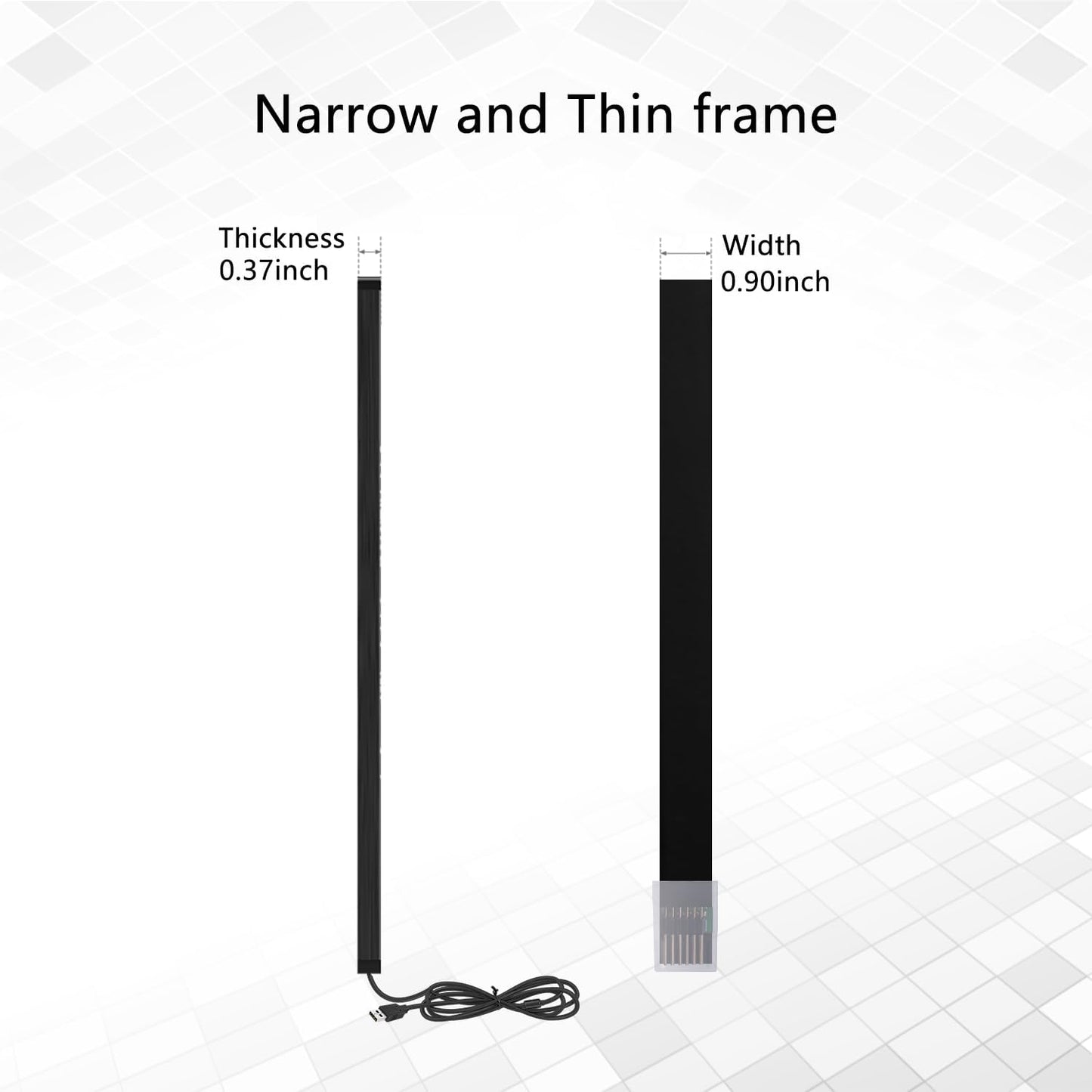

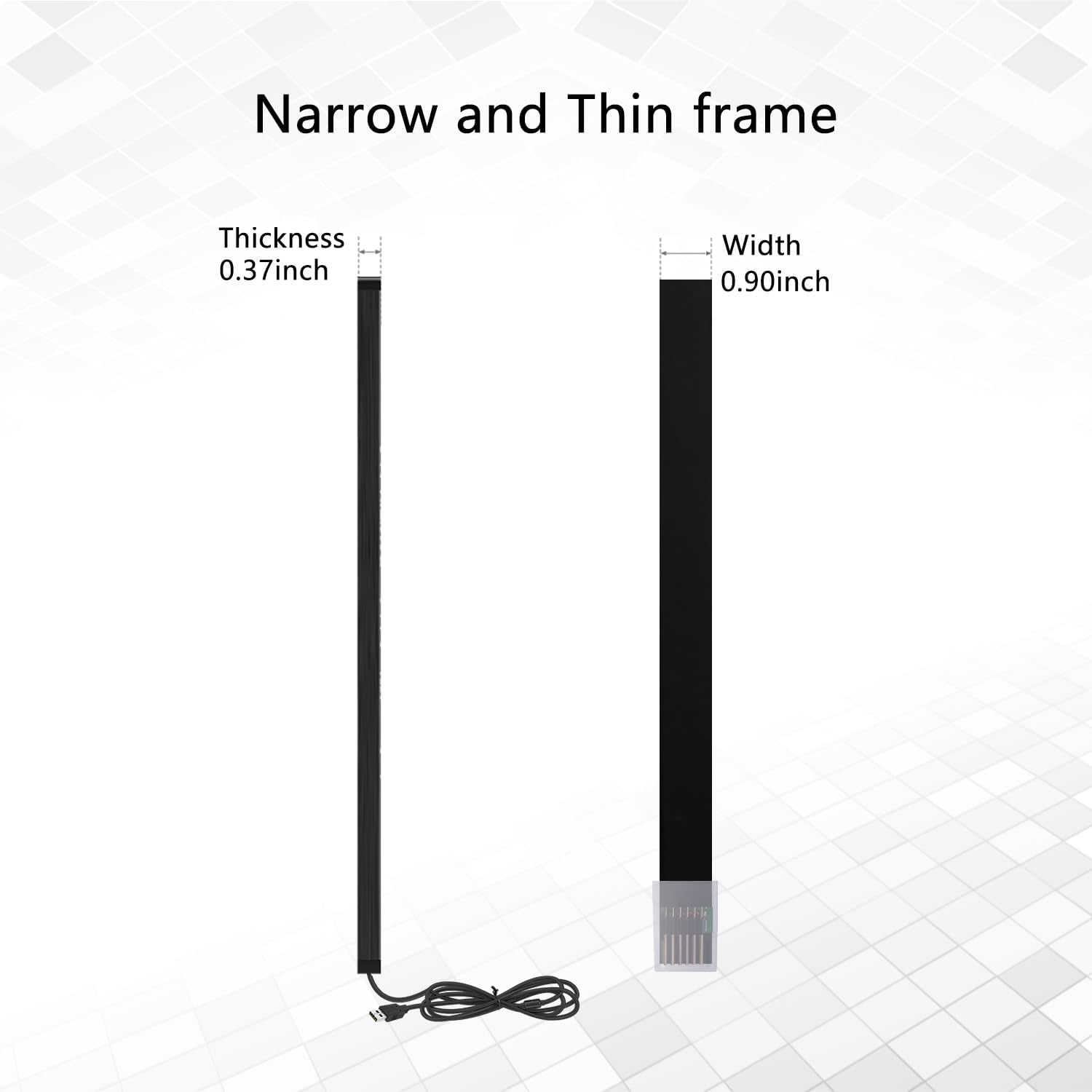

• Item Dimensions: 0.37 in D × 49.39 in W × 28.5 in H

• Item Weight: 0.95 kg

• Shell Material: Aluminum Alloy

• Mounting Type: Wall Mount

• Shape: Rectangular

• Color: Black

• Model: GT-IR-F55.0-1

• Series Number: 55

• Unit Count: 1 Count

Features

• Infrared Touch Detection: Detects touch input through interruptions within an invisible infrared light grid.

• Multi-Touch Operation: Provides responsive touch interaction without requiring a specially coated display surface.

• Light-Resistant Design: Suitable for internally and externally linked environments.

• Automatic Calibration: Intelligent automatic calibration supports convenient setup and operation.

• Plug-and-Play Setup: Connects through USB without requiring a driver on supported systems.

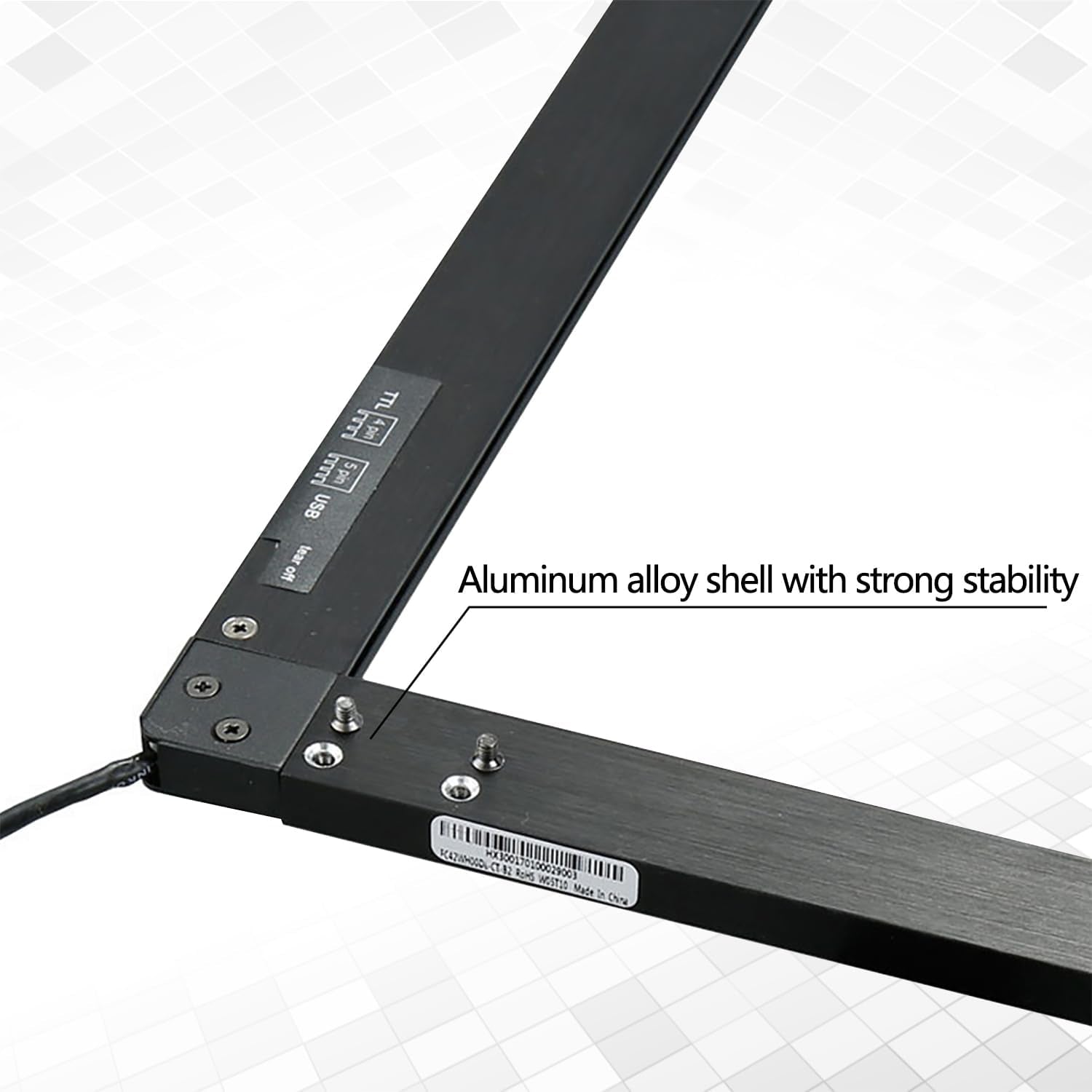

• Aluminum Alloy Housing: Provides structural stability in a lightweight frame.

• Responsive Touch Input: Provides a typical response time of 3–10 ms.

• Smooth Touch Tracking: Supports smooth and accurate curves without blind areas, breakpoints, jump points, or pauses.

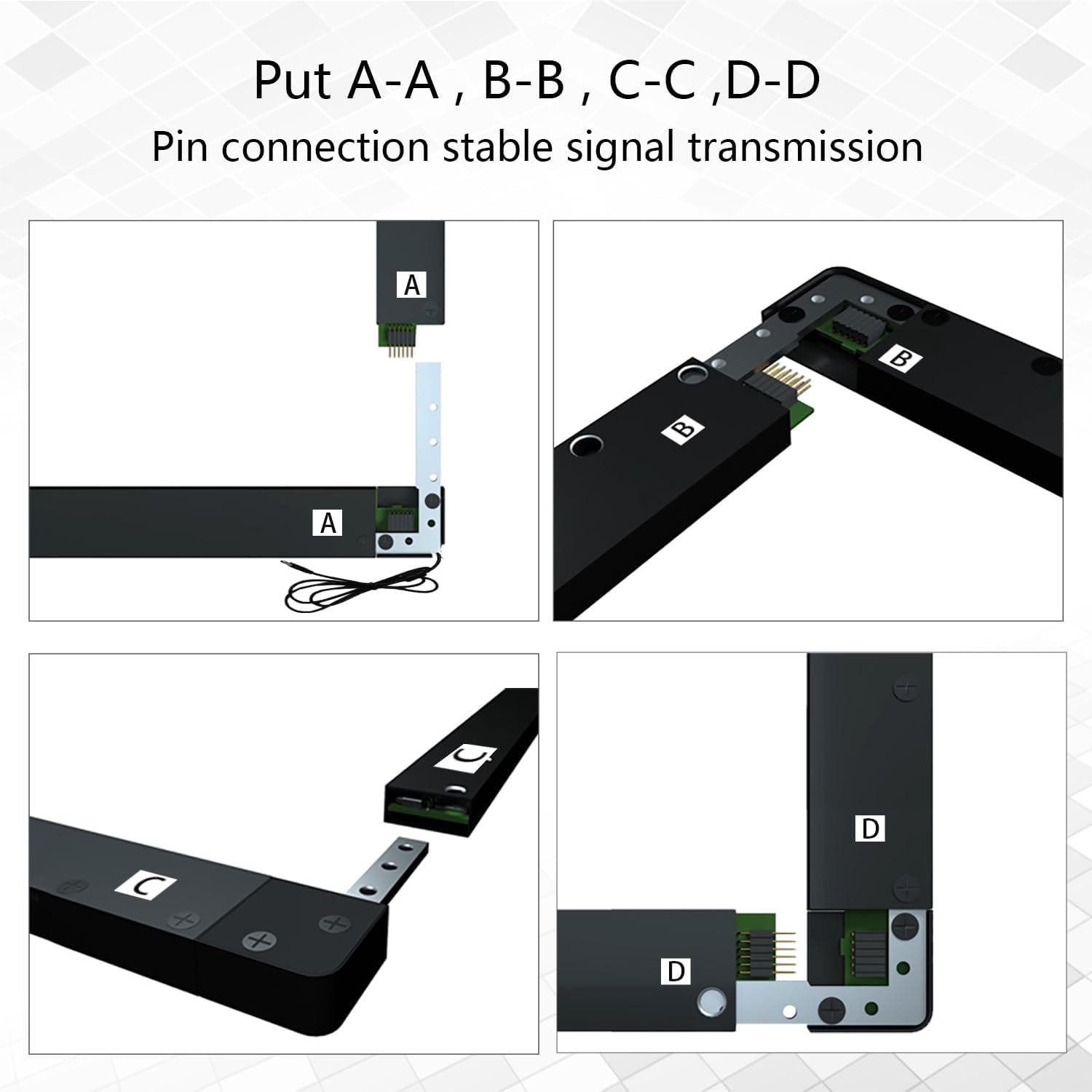

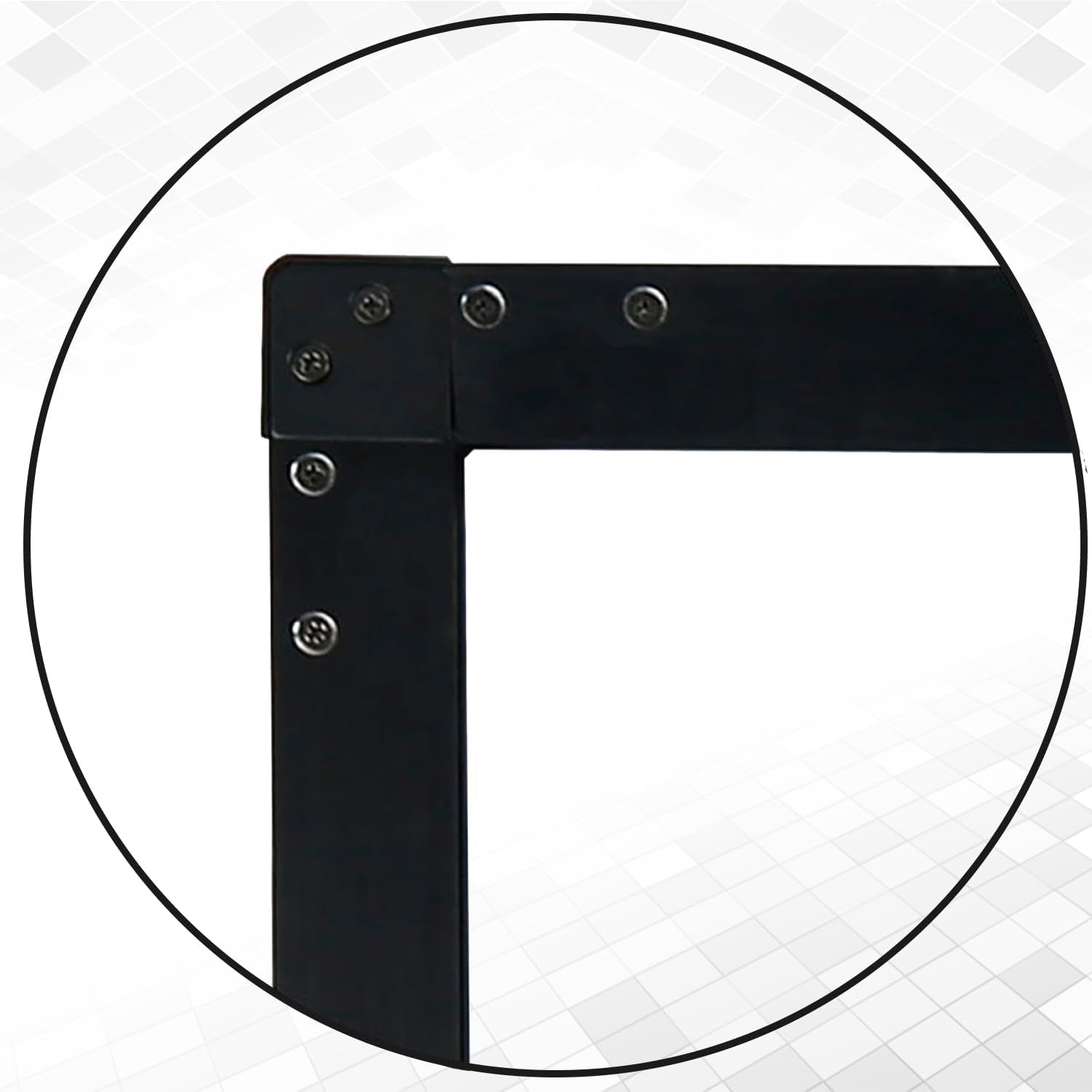

• Easy Assembly: Four touch-frame sections connect to create the complete rectangular overlay.

• Multiple Applications: Suitable for digital signage, interactive kiosks, educational environments, self-service systems, touch tables, interactive whiteboards, public information systems, industrial control, advertising displays, and games.

Compatibility Notes

• Raspberry Pi: Not Supported

• Android Smart TV: Android Smart TV Operating Systems Are Not Supported

• Different Display Sizes: Updated firmware may be required when using the frame with a smaller display.

• Linux and Mac Software: Drivers and software are not included for Linux and Mac systems.

• Testing and Debugging: Testing and debugging software is available for Windows and Android systems.

• Before Operation: Ensure all frame sections are correctly assembled before using the product.

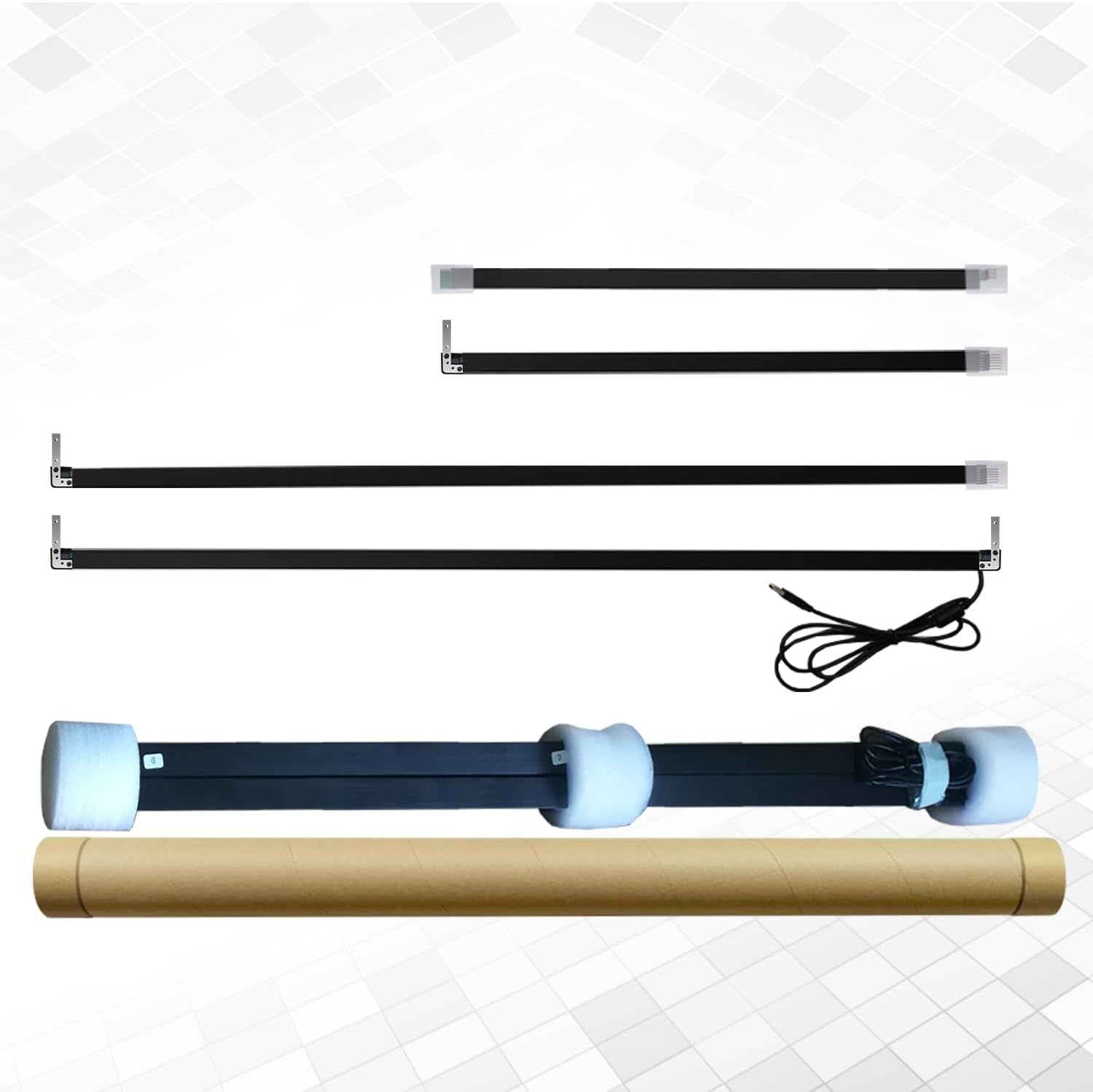

Package Contents

• Touch Frames: 4 Pieces

• Screws and Covers: 8

• Installation Manual: 1
