12V Flexible Solar Panel Kit 240W 360W 480W 600W 720W Charge Controller Cable for Battery RV Trailer Boat Cabin Caravan Truck

12V Flexible Solar Panel Kit 240W 360W 480W 600W 720W Charge Controller Cable for Battery RV Trailer Boat Cabin Caravan Truck Use provide expandable solar power options for batteries and 12V or 24V systems. Made with high-efficiency monocrystalline silicon cells, the lightweight and ultra-thin flexible panels are suitable for curved or irregular surfaces on RVs, boats, yachts, trucks, campers, trailers, cabins, tents, golf carts, and other applications. Available configurations range from a single 120W panel to a six-panel 720W kit with compatible controllers, connection cables, and adapters.

Specifications

• Product Type: Solar panel

• Panel Type: Flexible monocrystalline solar panel

• Available Capacities: 120W, 240W, 360W, 480W, 600W, and 720W

• Maximum Kit Power: 720W with six panels

• Maximum Power per Panel: 120W

• Maximum Power Voltage: 18.15V

• Maximum Power Current: 6.6A

• Open-Circuit Voltage: 21.78V

• Short-Circuit Current: 6.9A

• Output Tolerance: ±5%

• Maximum System Voltage: 700V DC

• Cell Efficiency: 24%

• Number of Cells: 33 solar cells

• Panel Material: Monocrystalline silicon with a PET surface

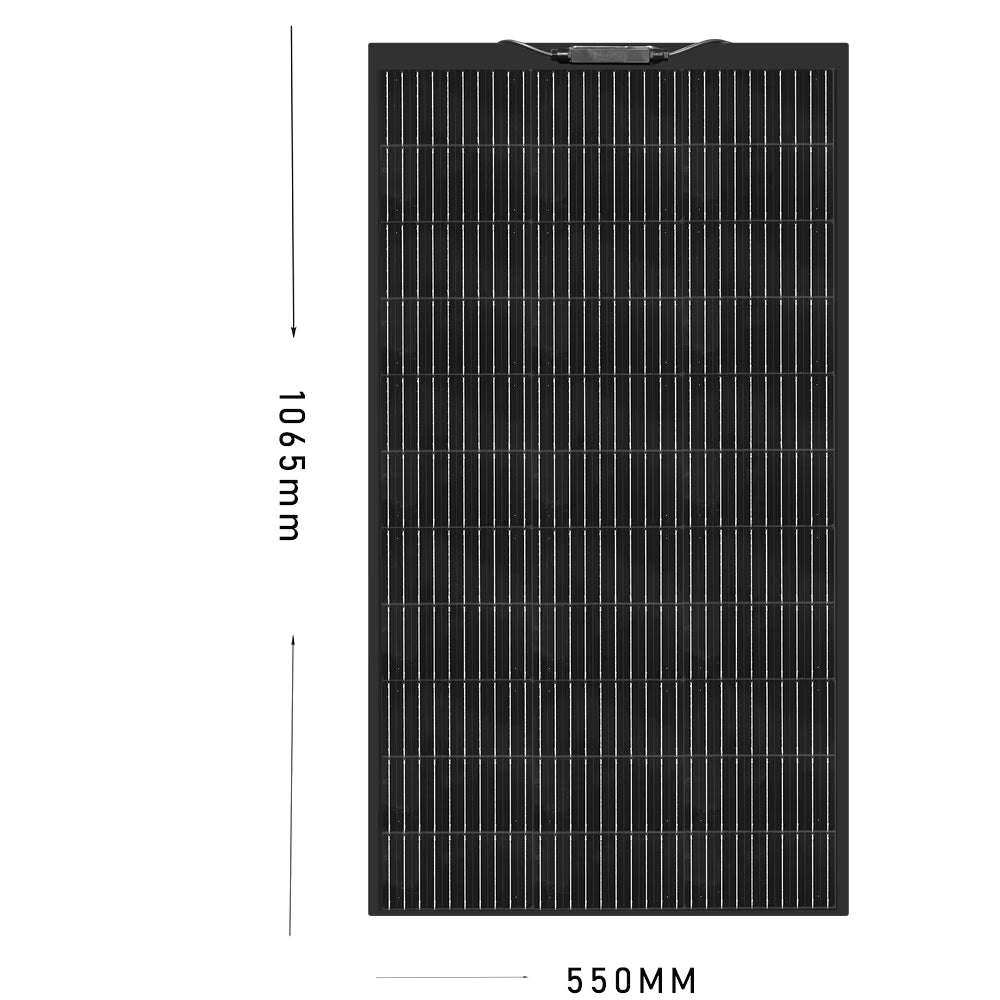

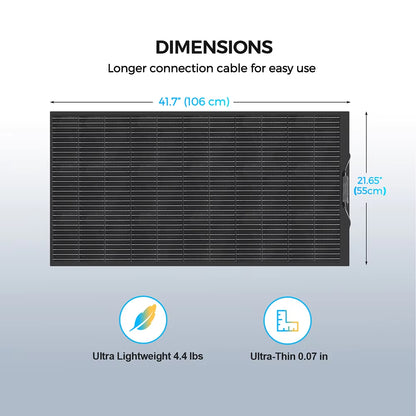

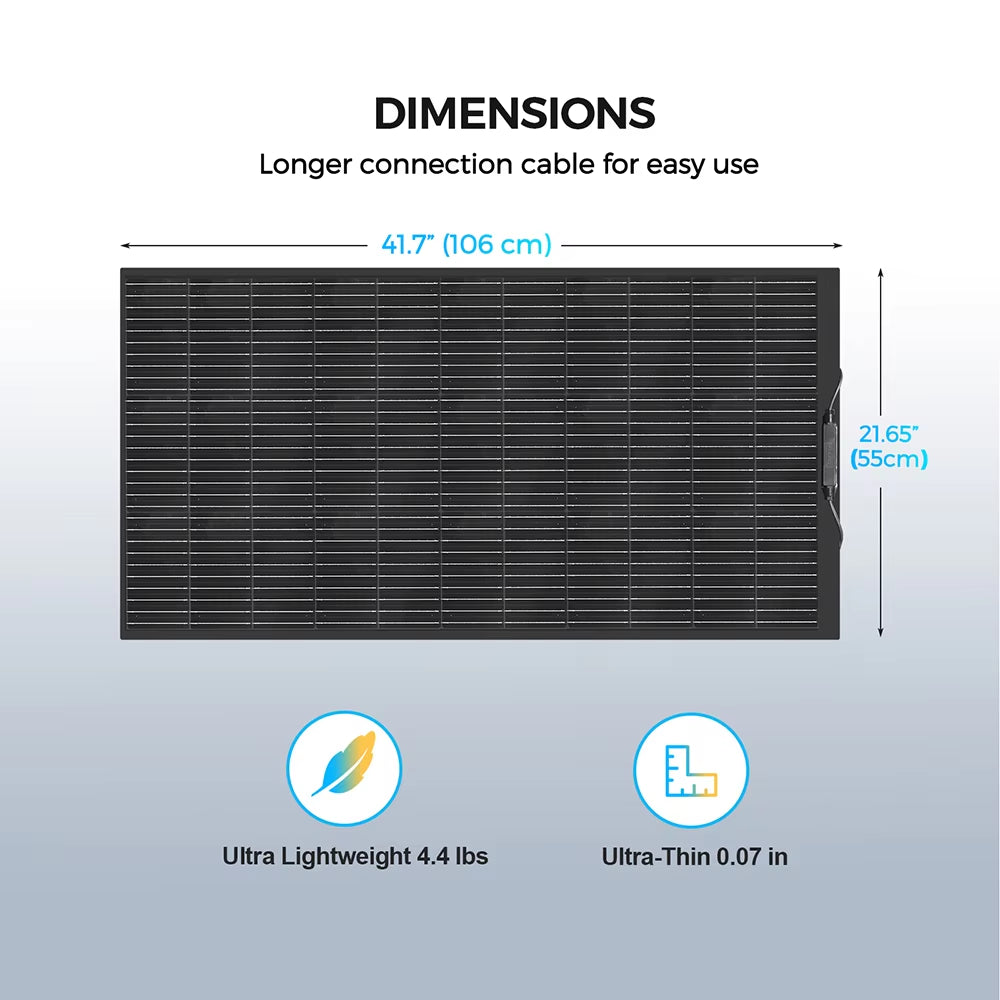

• Panel Dimensions: 1065 × 550 × 3 mm

• Panel Weight: 2060g

• Operating Temperature: 45±2℃ NOCT

• Temperature Range: -40℃ to +80℃

• Output Cable: 0.9 m cable with PV connectors

• Junction Box Rating: IP67 waterproof design

• Color: Black

• Standard Test Conditions: Irradiance 1000W/m², temperature 25℃, AM 1.5

• Certification: WEEE

Features

• Monocrystalline Solar Cells: High-efficiency cells provide a compact panel area for the rated power output.

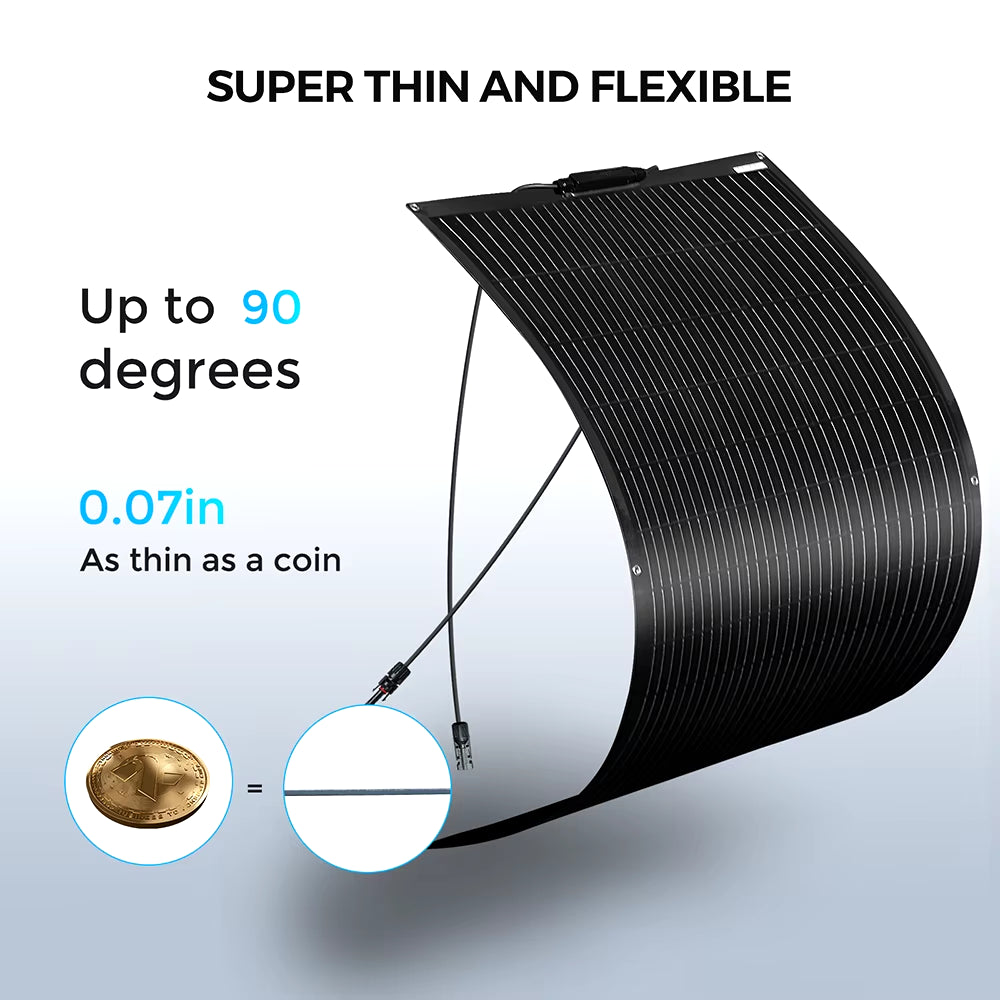

• Flexible Construction: Designed for installation on curved and irregular surfaces, including RVs, boats, yachts, trucks, campers, trailers, cabins, tents, and golf carts.

• Lightweight and Ultra-Thin: The low-profile design is suitable for surfaces with limited load-bearing capacity or installation space.

• PET Surface: The treated PET surface is designed for wear resistance and efficient sunlight absorption.

• Weather-Resistant Components: Includes photovoltaic cable and waterproof, high-temperature-resistant PV connectors for outdoor use.

• Integrated Protection: The IP67 junction box contains a bypass diode, while the circuit includes overcurrent and reverse-current protection.

• Expandable Configurations: Choose from 120W to 720W systems with controllers sized for each kit.

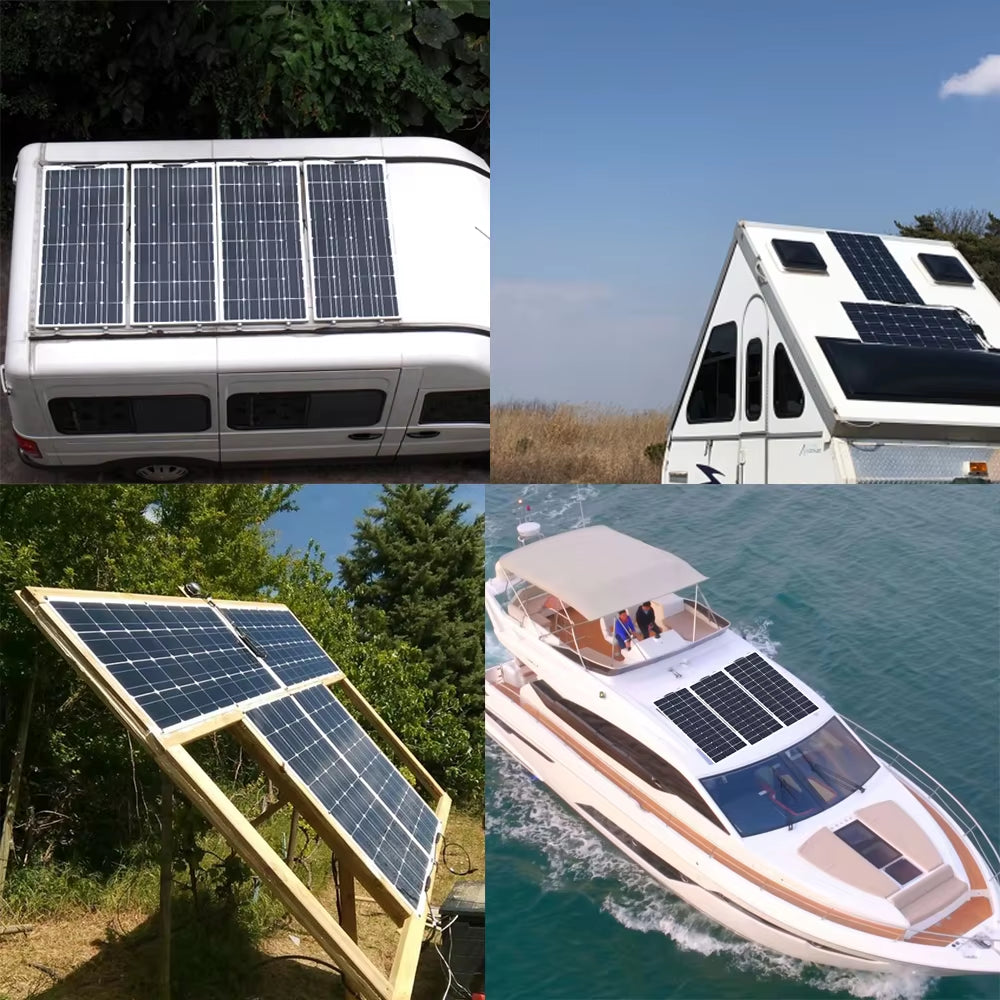

• Versatile Applications: Suitable for household systems, camping, RVs, yachts, cabins, street lights, solar power stations, and areas without convenient access to electricity.

Available Kits

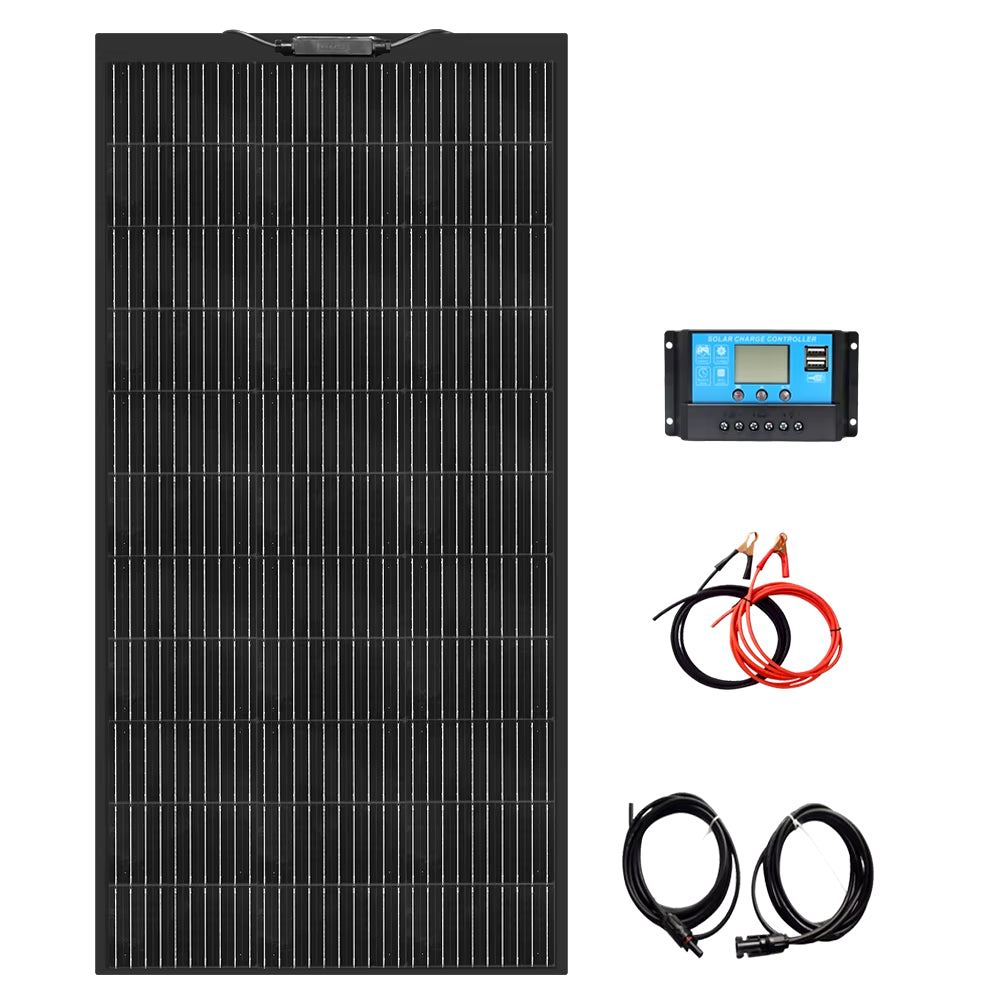

• 120W Kit: One flexible solar panel, one 12V/24V 10A controller, one 3 m cable with PV connectors in 2.5 mm², and one 3 m cable with alligator clips in 2.5 mm².

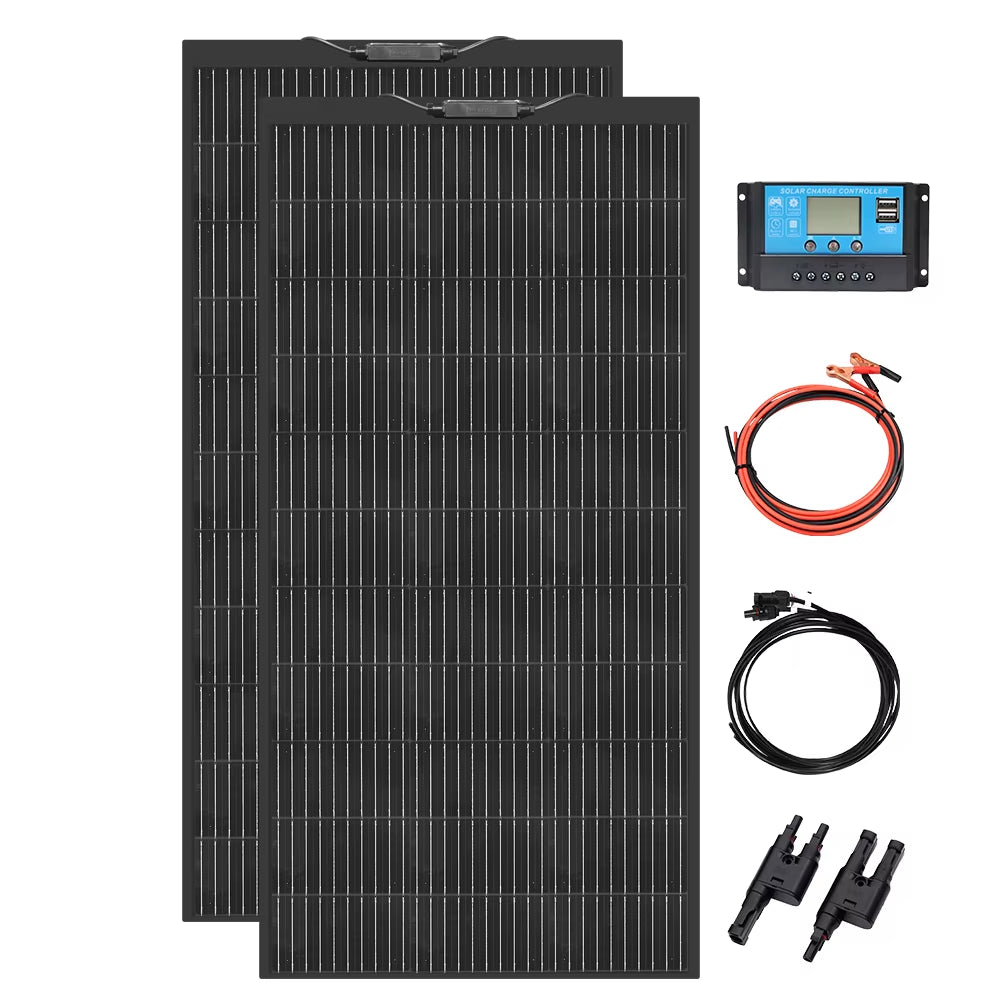

• 240W Kit: Two flexible solar panels, one 12V/24V 20A controller, one 3 m cable with PV connectors in 2.5 mm², one 3 m cable with alligator clips in 2.5 mm², and one 2-in-1 adapter.

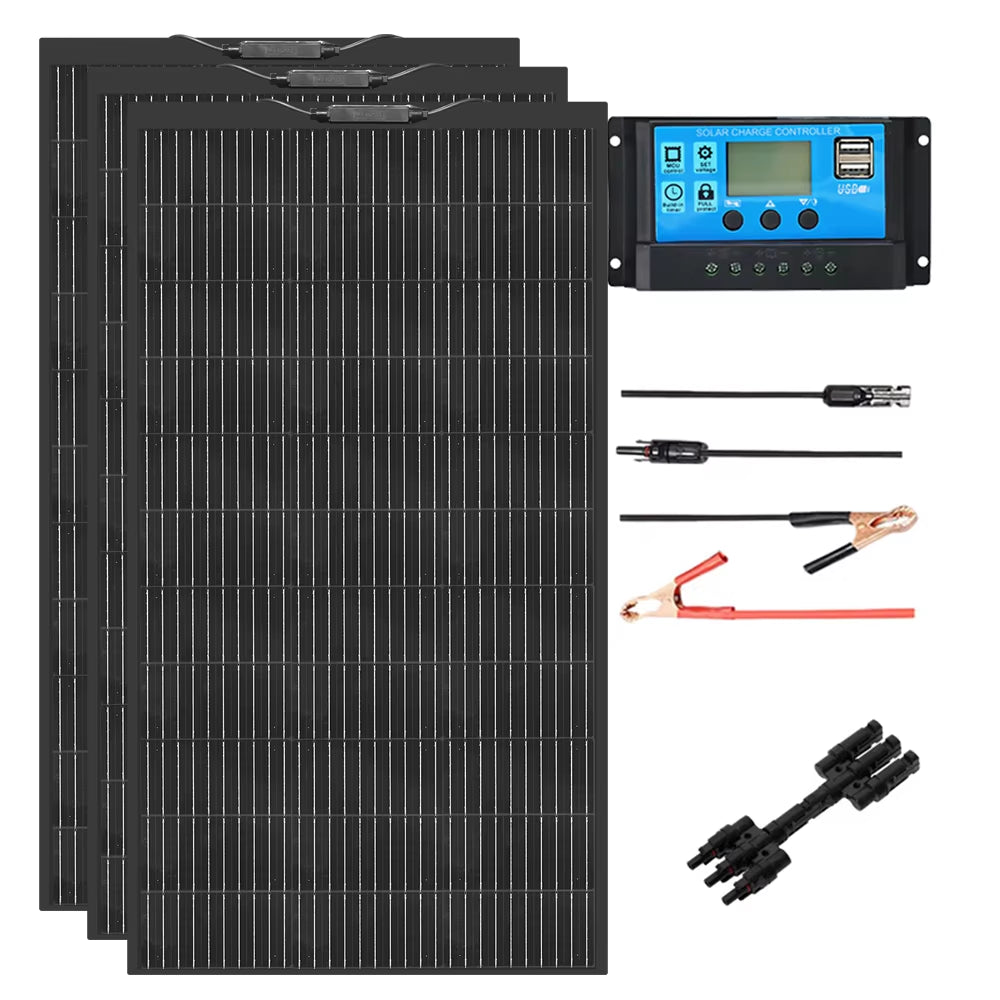

• 360W Kit: Three flexible solar panels, one 12V/24V 30A controller, one 3 m cable with PV connectors in 2.5 mm², one 3 m cable with alligator clips in 2.5 mm², and one 3-in-1 adapter.

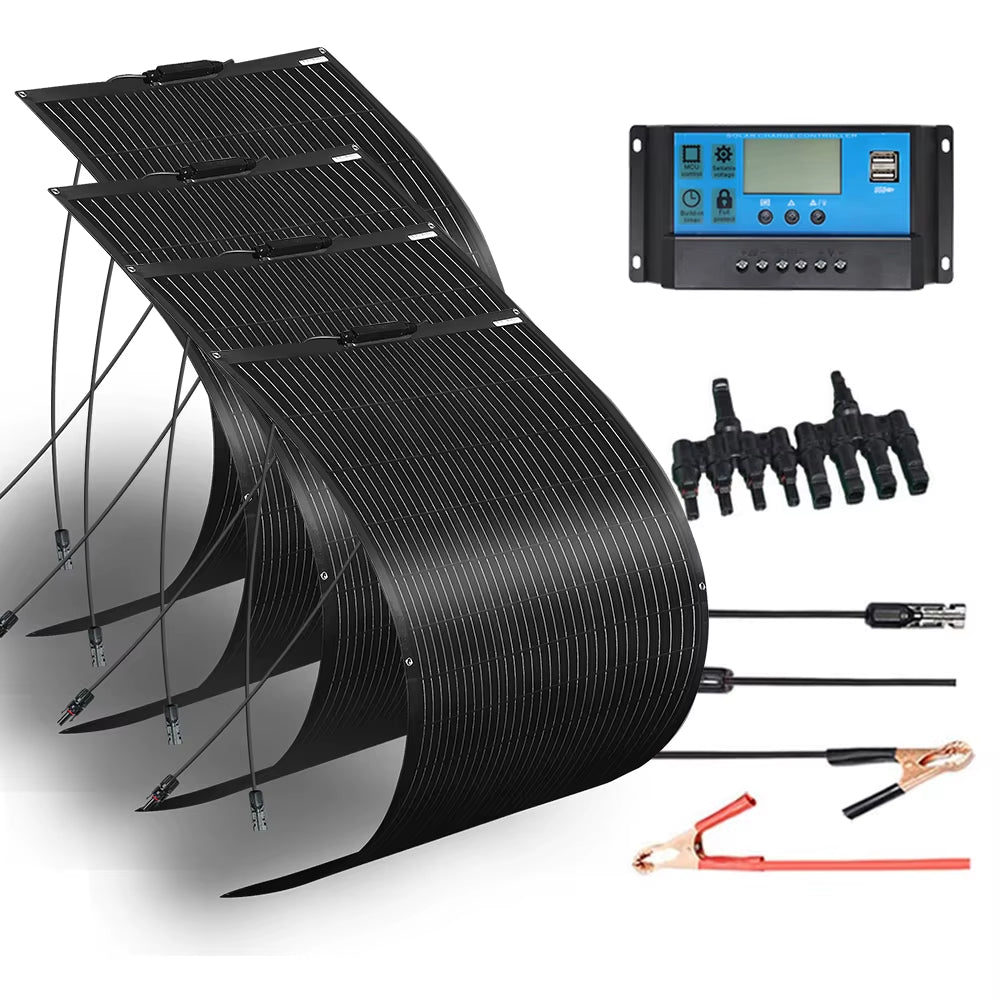

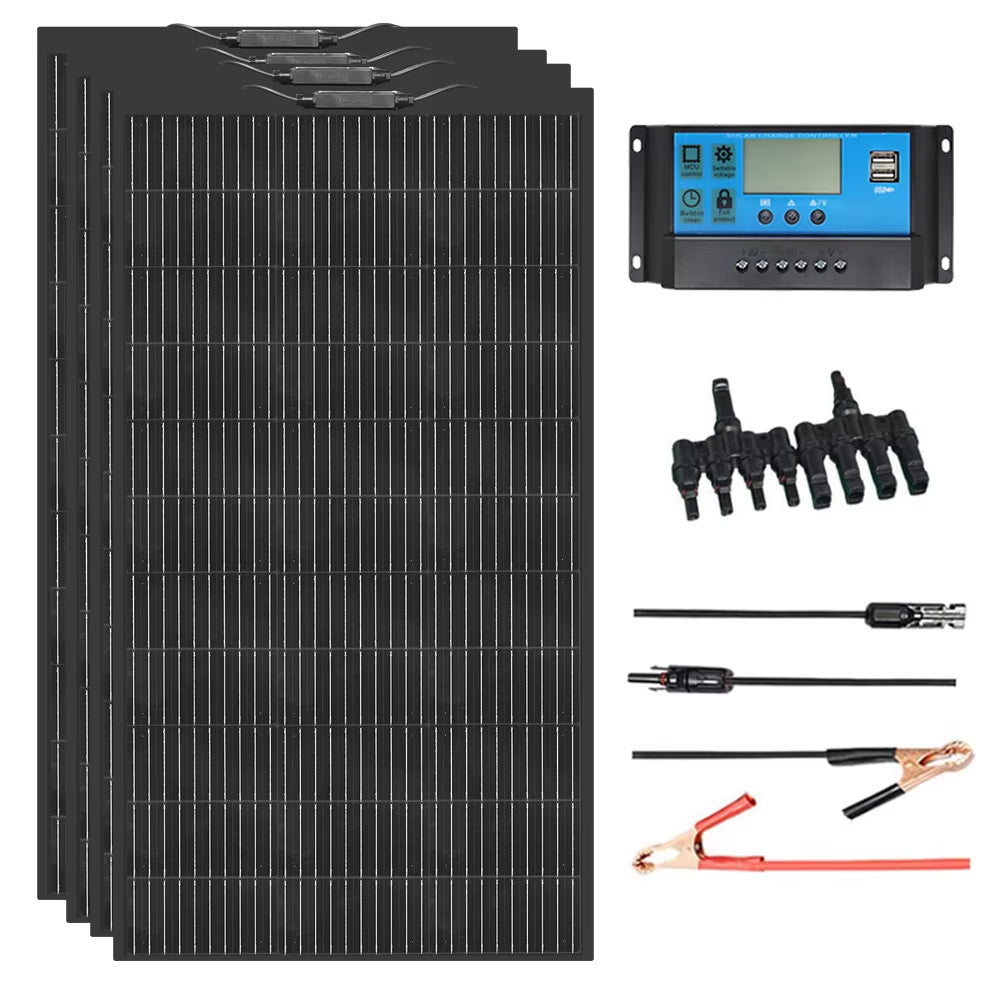

• 480W Kit: Four flexible solar panels, one 12V/24V 40A controller, one 3 m cable with PV connectors in 2.5 mm², one 3 m cable with alligator clips in 2.5 mm², and one 4-in-1 adapter.

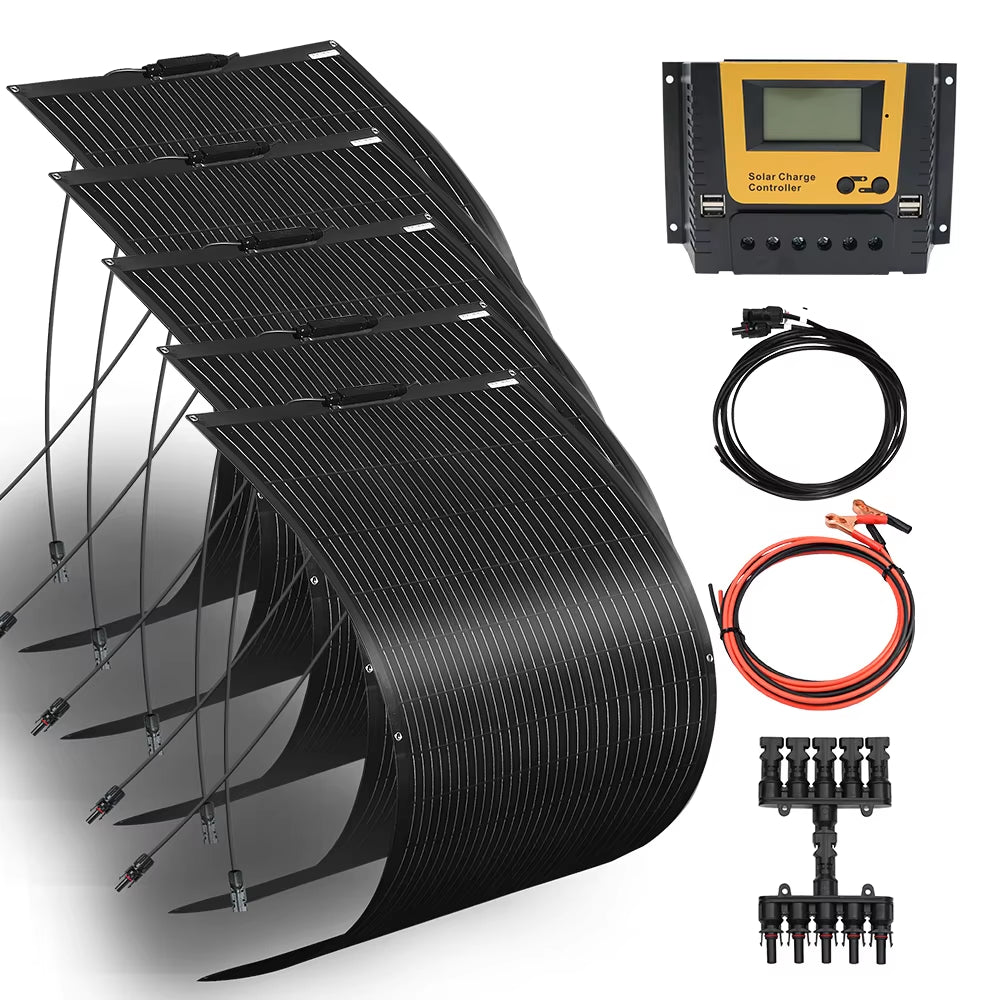

• 600W Kit: Five flexible solar panels, one 12V/24V 40A controller, one 3 m cable with PV connectors in 2.5 mm², one 3 m cable with alligator clips in 2.5 mm², and one 5-in-1 adapter.

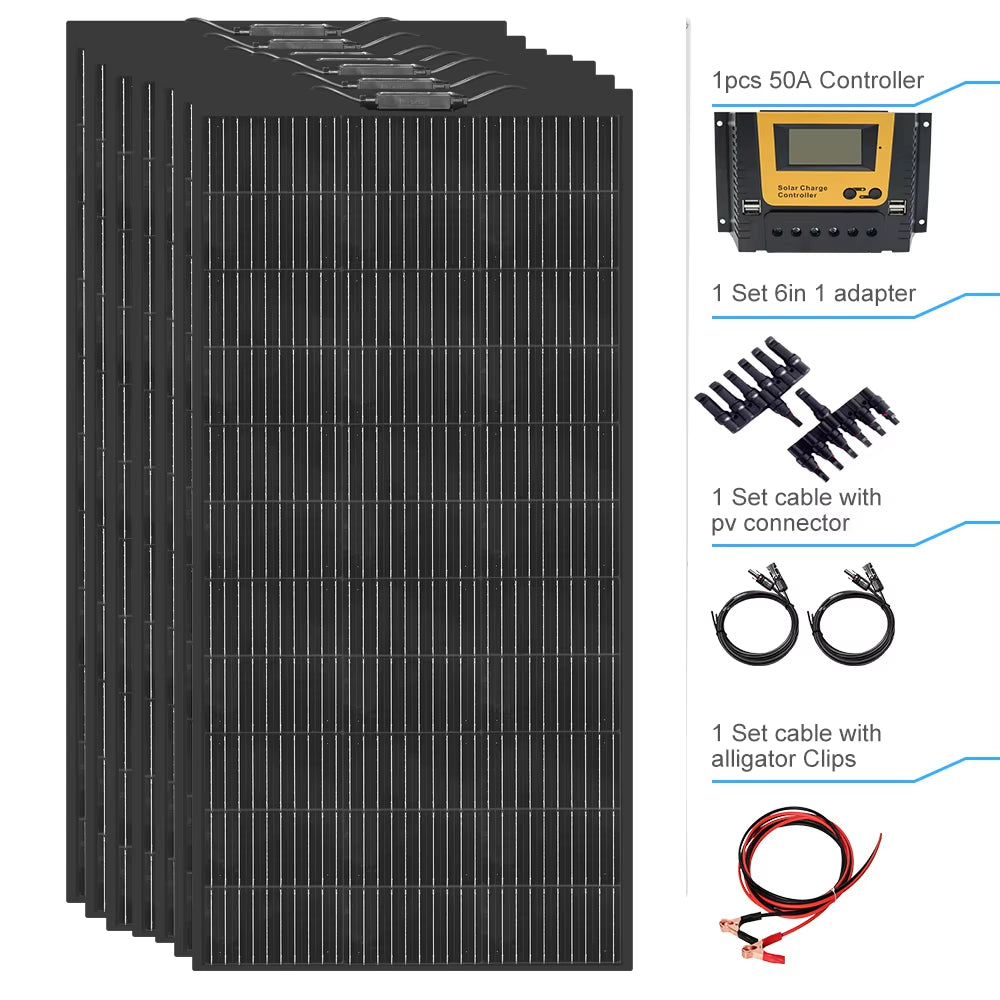

• 720W Kit: Six flexible solar panels, one 12V/24V 50A controller, one 3 m cable with PV connectors in 4 mm², one 3 m cable with alligator clips in 4 mm², and one 6-in-1 adapter.

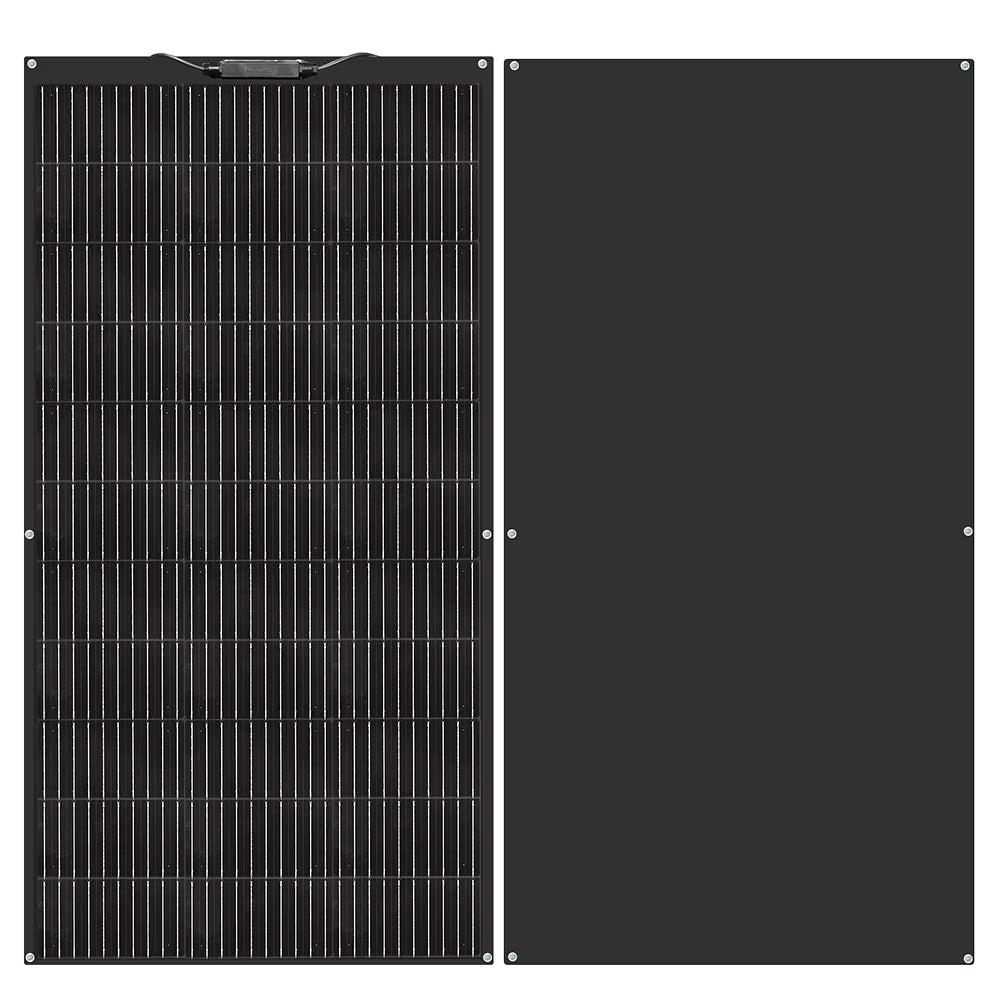

• Panel-Only Option: One flexible solar panel.

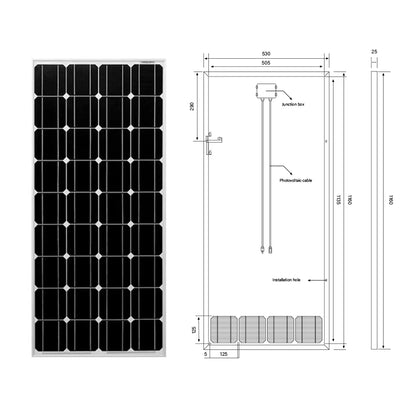

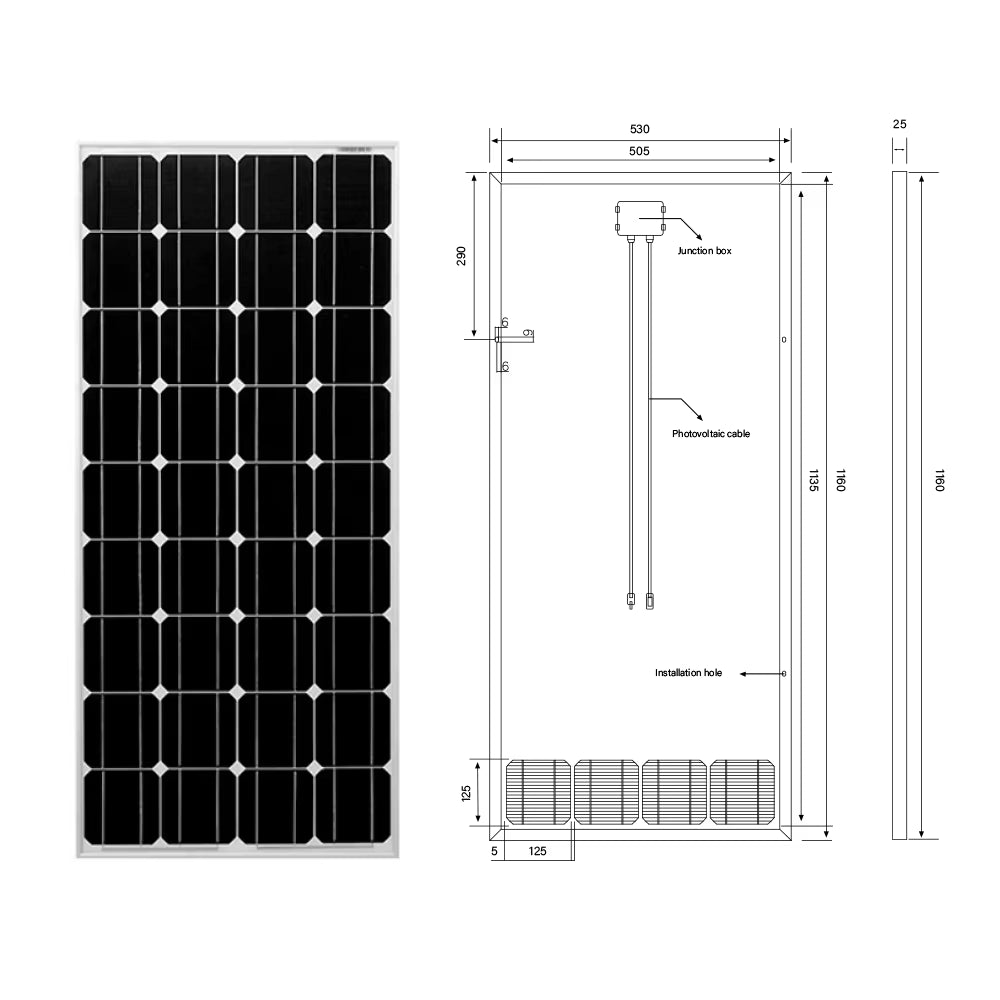

Rigid 120W Model

• Maximum Power: 120W

• Output Tolerance: ±3%

• Maximum System Voltage: 700V DC

• Open-Circuit Voltage: 21.6V

• Maximum Power Voltage: 18V

• Short-Circuit Current: 6.8A

• Maximum Power Current: 6.5A

• Cell Efficiency: 22%

• Number of Cells: 36

• Dimensions: 1160 × 530 × 25 mm

• Weight: 5600g

• Operating Temperature: 45±2℃ NOCT

• Temperature Range: -40℃ to +80℃

• Standard Test Conditions: Irradiance 1000W/m², temperature 25℃, AM 1.5

Installation

• Mounting Surface: Install the solar panel on a smooth surface with good sunlight and no shadow. Avoid installation on uneven areas.

• Mounting Method: The solar panel can be secured with glue or bolts.

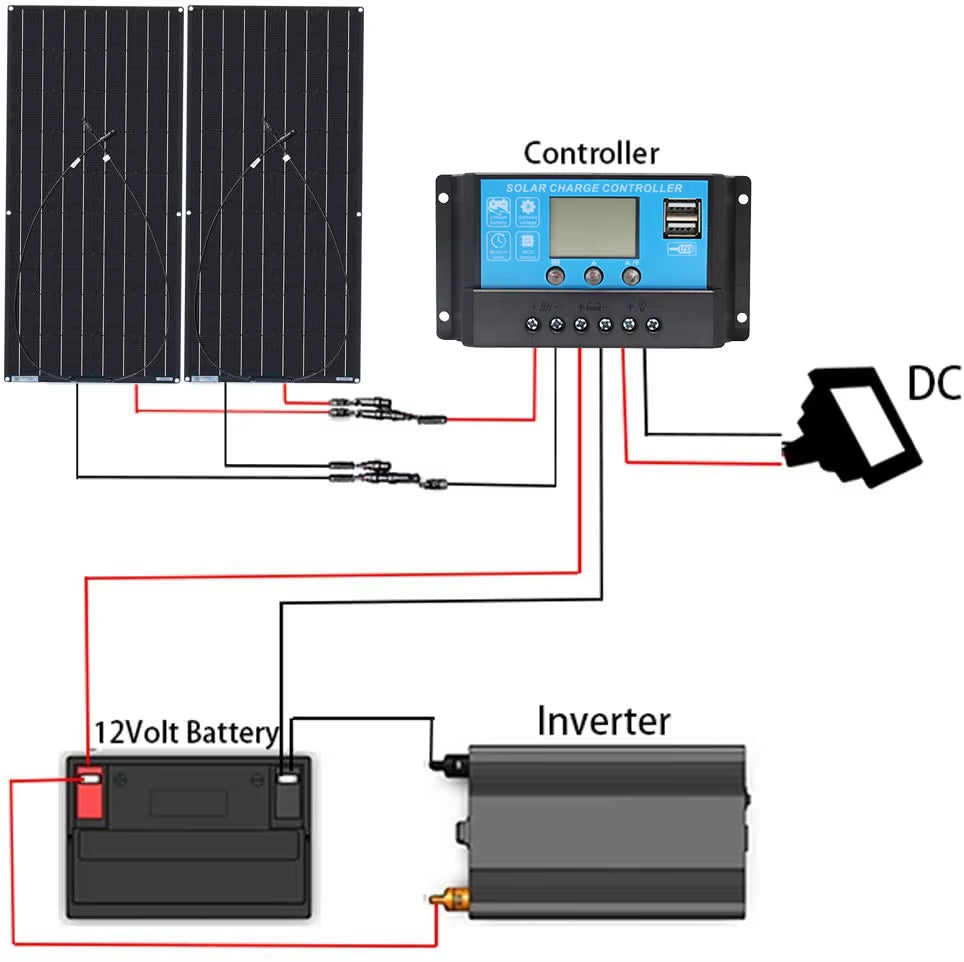

• 12V Battery Connection: Use a parallel panel connection.

• 24V Battery Connection: Use two panels connected in series.

• Connection Order: Connect the controller to the battery first, then connect the solar panel to the controller through the transfer cable.

• DC Load: Connect the required DC load to the controller's load terminals after the battery and solar panel are connected.

• Inverter Connection: Connect the inverter directly to the battery, not to the controller.

• Controller Placement: Install the controller in a well-ventilated indoor or shaded area and prevent water from entering it.

• Power Limits: The total solar-panel and DC-load power must not exceed the rated power of the controller.

• Input Voltage: The total photovoltaic-module voltage must remain within the controller's photovoltaic input-voltage range.

• Polarity: Verify all positive and negative terminals before connecting the panels, controller, and battery.

• Final Inspection: Check that all line connections are secure after installation.

Maintenance

• Surface Care: Keep the panel surface clean and free from excessive dirt and scratches.

• Handling: Do not disassemble, drop, strike, stack, trample, or place hard objects on the panel.

• Chemical Exposure: Keep the product away from highly corrosive substances.

• Bending: Avoid excessive or prolonged bending of flexible panels.

• Installation Area: Maintain unobstructed sunlight and avoid long-term partial shading.

• Environmental Limits: Do not place the product in water or fire, and keep it within the stated ambient temperature range.

• Electrical Safety: Do not short-circuit the positive and negative terminals or reverse the connection polarity.
